# Insulation Area of Fittings

Calculates insulation area on pipe / tube fittings

**Icon:** <picture><source srcset="/files/IVztJx4bToWn32hWIIuG" media="(prefers-color-scheme: dark)"><img src="https://1447183368-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FmPkPo171IOKFjHd2P5BI%2Fuploads%2FIdPcGArDlIO1IVg1Za38%2FInsulationAreaOfFittings.png?alt=media&amp;token=d1b2471f-bb1b-433a-a058-b3bde144b2c0" alt="" data-size="line"></picture>

**Location:** ribbon Be.Smart T4R MEP, panel Insulation

**Packages:** Be.Smart T4R Silver

### Overview

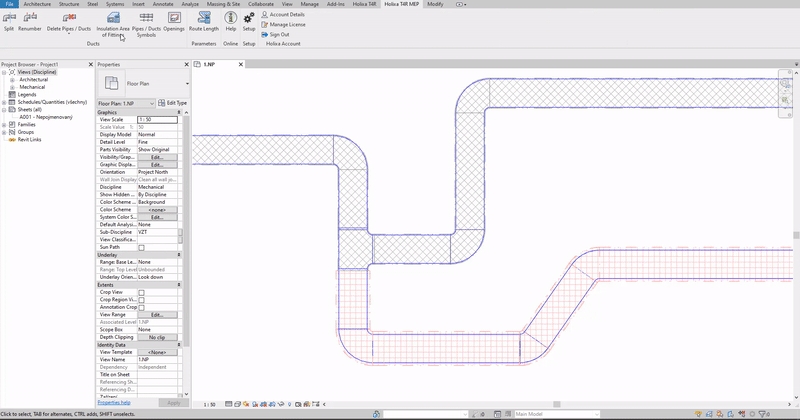

The Insulation Area of Fittings tool calculates the estimated insulation surface area that is used on pipes and duct fittings.

<figure><img src="https://content.gitbook.com/content/mPkPo171IOKFjHd2P5BI/blobs/3LYNuQepeMaC1yXPszAc/fittings%20insulation.gif" alt=""><figcaption></figcaption></figure>

#### Click to play the video tutorial ↓

{% file src="/files/VjC4KcLfPWqF3DUu6BHz" %}
