System Direction

Adds to the floor plan flow direction of vertical pipes

Icon:

Location: ribbon Be.Smart T4R MEP, panel Description

Packages: Be.Smart T4R Silver

Overview

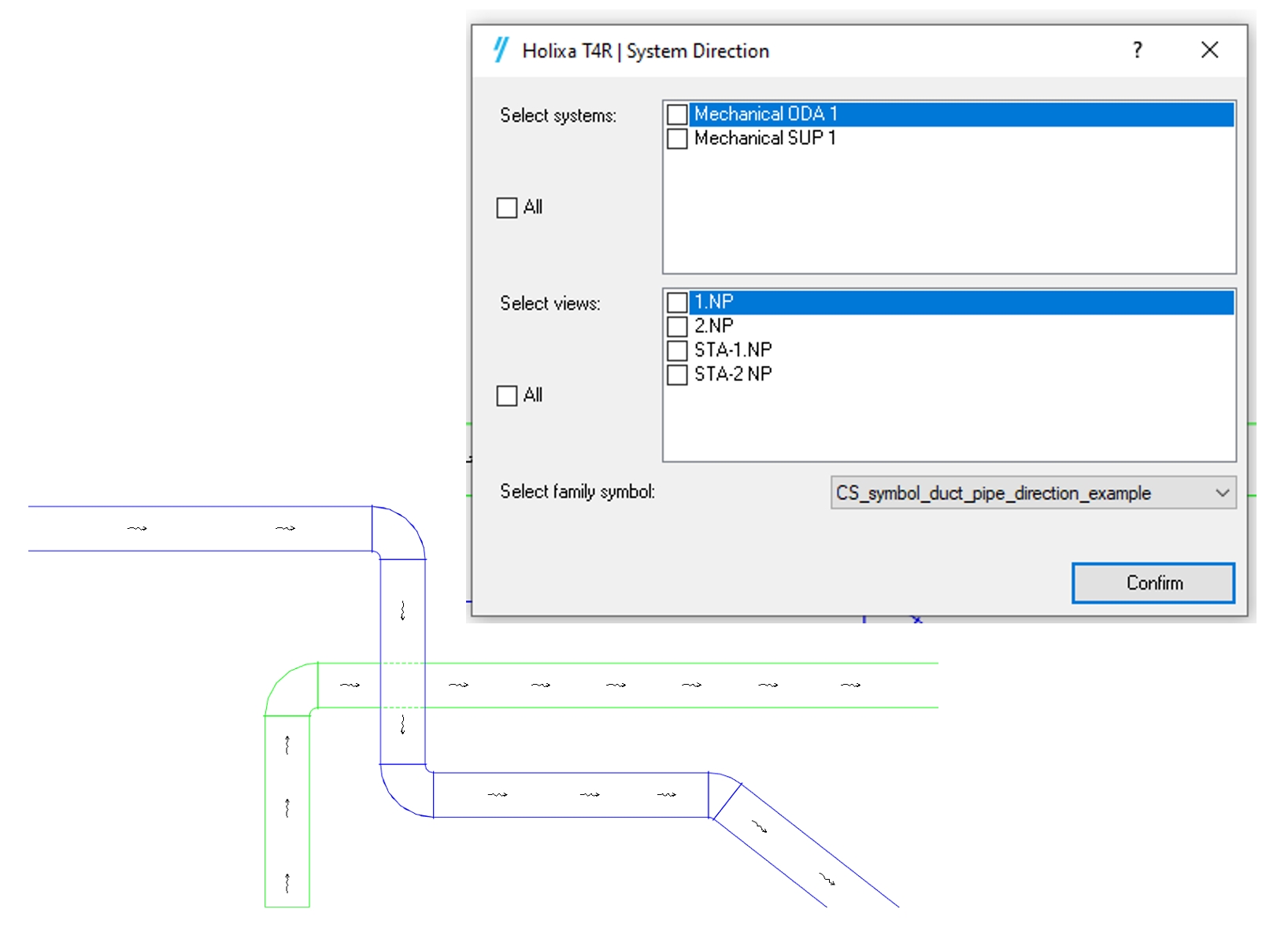

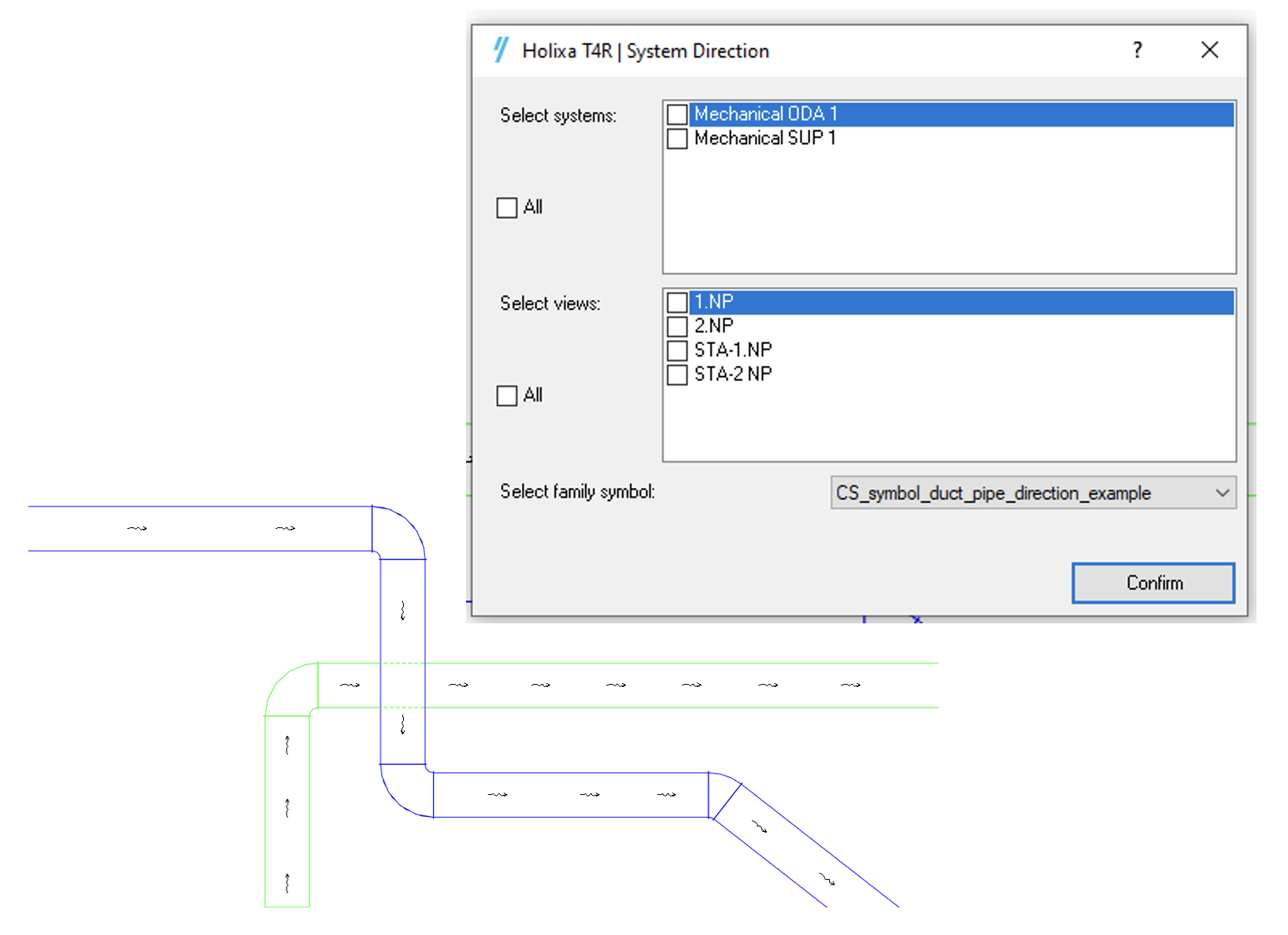

Adds flow direction of vertical pipes to the floor plan.

You can specify the systems, views for placing arrows and arrow angle.
