Site Productivity -integration

Site Productivity integration brings the machine movements from database on the map.

Site Productivity integration consists of two aspects; real-time machine locations and historic machine locations.

Access Site Productivity from Integrations -menu:

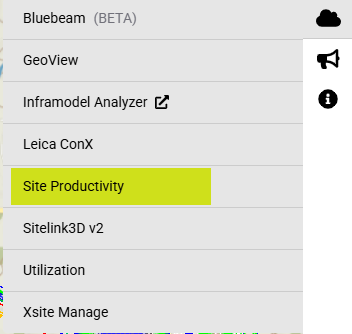

Site Productivity in Integration menu

Sign in

After clicking Site Productivity a new floating window will open, asking user to Sign in.

Sign in- option

Clicking Sign in, will open Be.Smart sign in page to a new browser window.

Be.Smart Sign in page

Sign in is done by using credentials to Site Productivity. After successful sign in, it is possible to select real-time machine location or browse and replay history of machine movements.

Real-time -tab

Real-time tab has only one checkbox "Display real-time device locations on the map".

This is on as a default, it will be turned off by unchecking the box or by navigating to History -tab.

History -tab

Everything starts with a date selection, as a default the previous day is suggested.

If there is no activity available for the selected date an error message is displayed.

History tab and error message

Once a date is selected, then it is possible to filter machines and start the replay.

History tab, with all the information

Replay is started by clicking play button, which changes to pause button, when the replay is active.

It is possible to jump to a specific time, by dragging the playback slider to specific time slot. The time is visible below the slider.

Bottom right corner shows the playback speed factor, it can be changed between 1x - 3x.

Sign out

Last one is Sign out -tab, which allows user to sign out from Site Productivity:

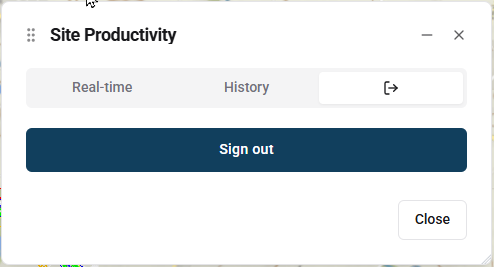

Sign out -tab
