Continuous Dimension

Automatic dimensioning of all walls on a virtual ray

Icon:

Location: ribbon Be.Smart T4R, panel Dimensions

Packages: Be.Smart T4R Bronze | Be.Smart T4R Silver

Main functionalities and benefits:

• Easy and quickly creates dimension in just two-clicks

• No need to select references one by one during dimensioning

Overview

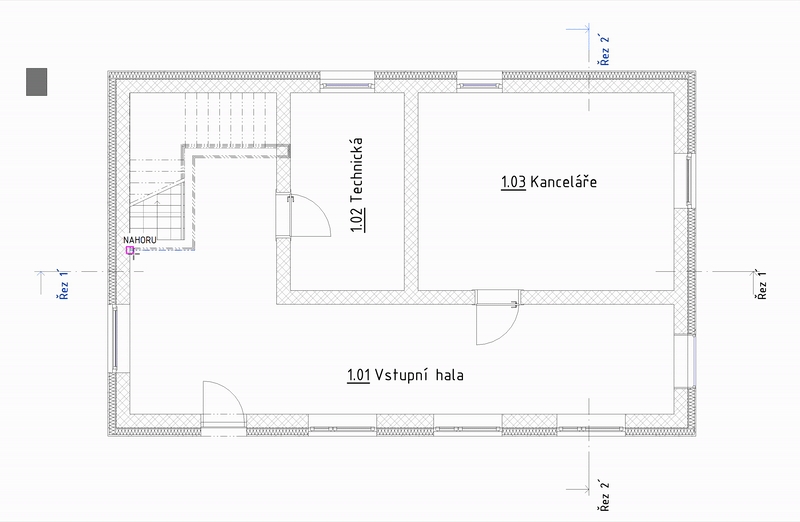

Continued dimension dimensions automatically all walls on a virtual ray. Just pick two points of the ray, and all walls will be dimensioned.

Click to play the video tutorial ↓

33MB

Continuous Dimension.mp4

Open
