Join Geometry

Mass joining of elements by selected categories, including the option to set the first and second level priority.

Icon:

Location: ribbon Be.Smart T4R, panel Modify

Packages: Be.Smart T4R Silver

Main functionalities and benefits:

• Joining all (or only selected) elements with just one click according to the rules set by the user

• Improved productivity - no need to join elements one by one

• Create better-coordinated and more accurate models

Overview

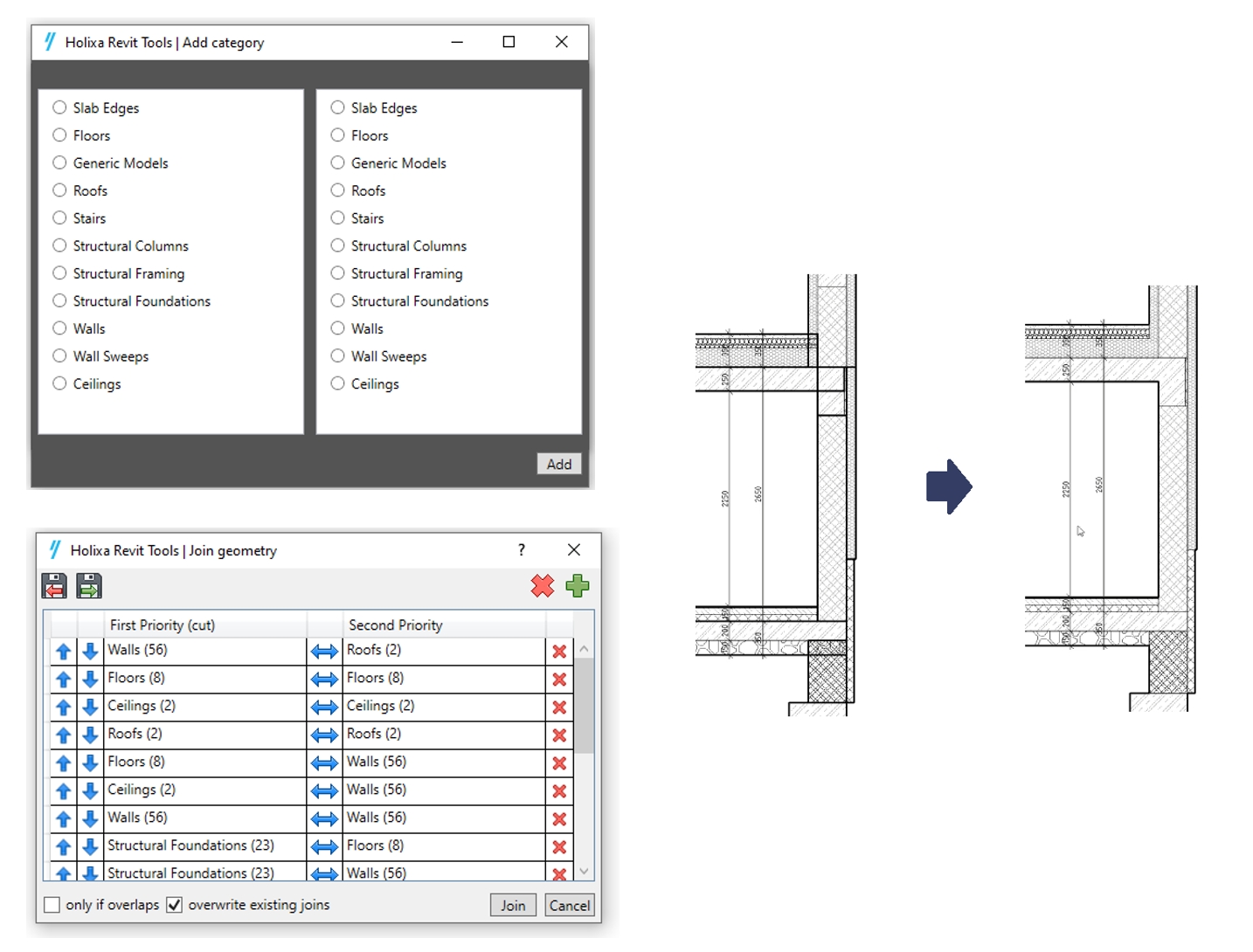

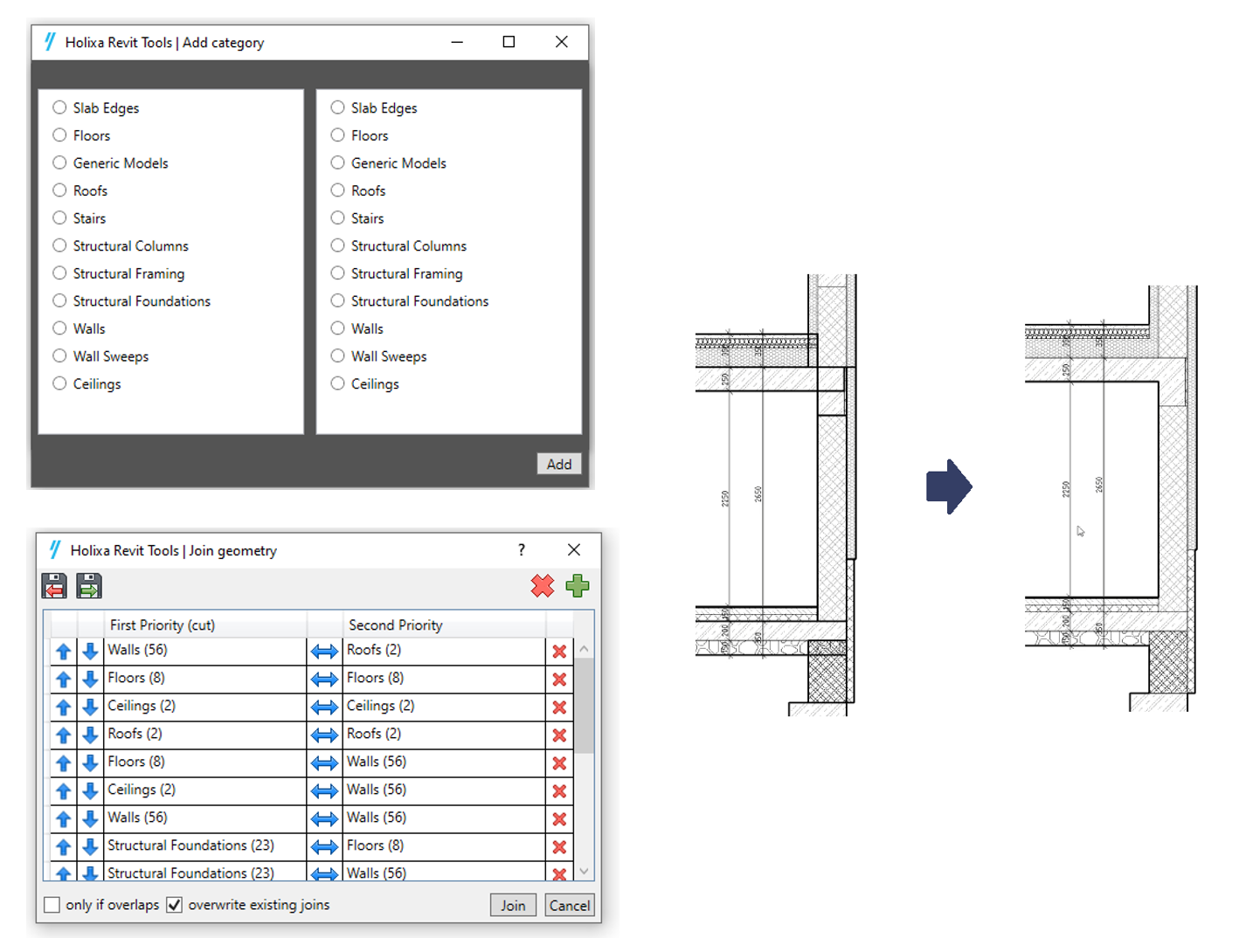

Multiple joining of elements by selected categories, including the option to set the first and second level priority.

You can also save the “join-rules” to the disk and load the rules between projects.

You can use this tool for these categories: Slab Edges, Floors, Generic Models, Roofs, Stairs, Structural Columns, Structural Framings, Structural Foundations, Walls, Wall Sweeps. Ceilings.

Click to play the video tutorial ↓

8MB

JoinGeometry.mp4
