Line Of Travel

Generates the stair arrow, numbering and description

PreviousDimension Text MoverNextStructure Description

Last updated 1 year ago

Was this helpful?

Icon:

Location: ribbon Be.Smart T4R, panel Description

Packages: Be.Smart T4R Silver

Main functionalities and benefits:

  • Work easier and faster with stairs

  • Enhanced and automated tagging based on European standards

Overview

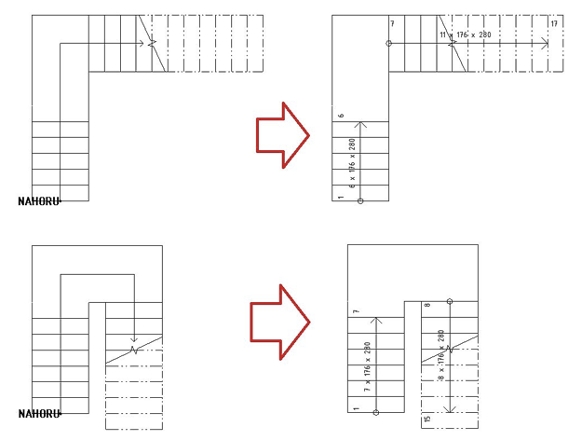

Allow generating the stair arrow by national standards, including stair description and tread numbering - on a single mouse click.

The tool also contains settings where you can define label text type, symbol radius, angle of the symbol line and length of the symbol line

Click to play the video tutorial ↓

8MB
LineOfTravel.mp4
Settings
