Hide all

Command Description

This tool hides all work features in the part or assembly and all dependent documents. Unlike the internal Inventor Object visibility command, it really sets the property Visibility to NO.

Comparison of the command with Inventor's built-in Object Visibility command

Hide all (Holixa T4I)
Object Visibility (Inventor)

Main assembly default work features visibility state

Main assembly work features visibility state after using the command

Subassembly work features visibility state after using the command

Command Location

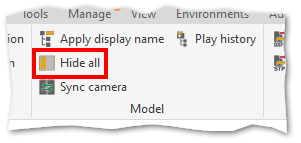

  • Part and assembly environment (Model panel)

  • Part and assembly environment (3D Model -> Work Features or Assemble -> Work Features)

Command Settings

Holixa T4I -> Holixa T4I -> Edit settings -> Other Tools -> Hide all.

Hide all command settings

A user can select what work features can be hidden by the command.

Workflow Overview

  1. Run the command.
