Configuration settings๐ŸŒŸ

Last updated 1 year ago

Was this helpful?

T4I configuration can be stored using two methods: in registry or XML file.

Registry configuration

Configuration is stored in the key HKEY_CURRENT_USER\Software\Holixa\T4I.

If needed, this branch can be from the registry and provided to other users to import the T4I settings.

T4I settings can be imported to the registry by double-clicking on the exported file.

When editing the Registry, always proceed with extreme caution.

Be.Smart T4I add-on restart is needed for the changes to take effect.

XML file configuration

If an XML file should be used for the configuration of T4I, it is necessary to provide a path to the XML file containing the T4I configuration settings.

Workflow overview for the XML configuration file

  1. (Export settings to the XML file using the Export settings command.)

  2. In the Configuration file name section, click the three-dots button.

  3. Select the XML file.

Be.Smart T4I add-on restart is needed for the changes to take effect.

Removing the configuration

The complete configuration of Be.Smart T4I can be removed by using the CleanupT4I.bat script. Copy the below code, create a new text file, paste the copied code, and save the file as a CleanupT4I.bat.

@ECHO off

ECHO Deleting registry keys
REG delete HKEY_CURRENT_USER\SOFTWARE\Holixa\T4I /f

ECHO Deleting AppData files
RMDIR /S /Q "%AppData%\Holixa\T4I"

ECHO Deleting Temp files
RMDIR /S /Q "%Temp%\Holixa\T4I"


TIMEOUT 5

By using the CleanupT4I.bat script, you acknowledge that the complete configuration of Be.Smart T4I will be erased.

๐Ÿ“˜
exported

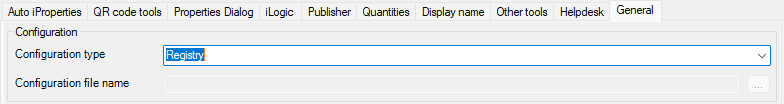

Registry configuration type

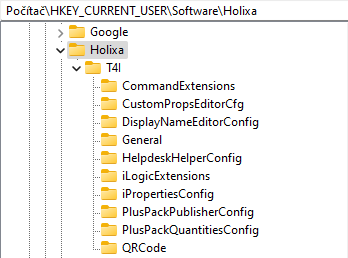

T4I key in Registry

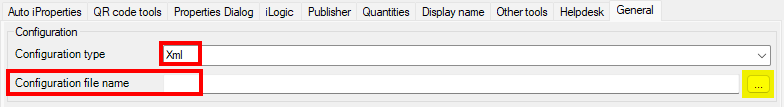

XML file configuration
