Sync 2

hashtag
Command Description

The Sync 2 command copies the item numbers of the Parts Only BOM view of the current (main) assembly to the Parts Only BOM view of the subassemblies.

circle-info

This command modifies components' item numbers in subassemblies.

circle-exclamation

This command is to be run in the main assembly only.

A schematic image of the process is in the image below.

Sync 2 command workflow

hashtag

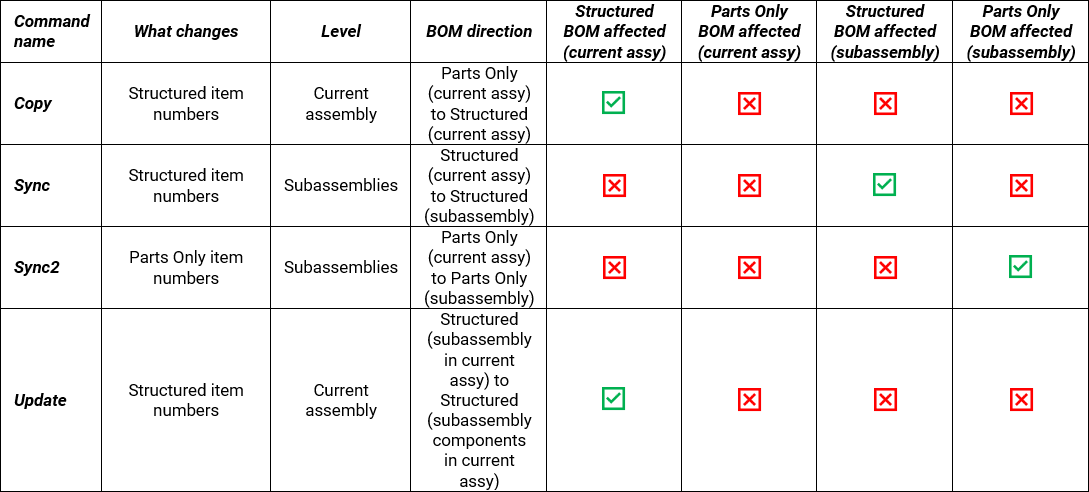

Summary of changes to the BOM performed by the command (a comparison matrix)

The comparison matrix of BOM manipulation tools

hashtag
Command Location

  • Assembly environment (Be.Smart T4I -> BOM panel, Assemble -> Manage panel).

hashtag
Command Settings

This command has no settings.

hashtag
Workflow Overview

  1. Run the command.

hashtag
Description of changes performed by the command

In the main assembly's parts-only BOM, components 004, 005, and 006 have item numbers 4, 5, and 6. In the parts-only BOM view in subassembly 010, their item numbers are 1, 2, and 3.

Parts-only main assembly BOM before applying the command
Parts-only subassembly BOM before applying the command
Parts-only subassembly BOM after applying the command

After running the command, the parts-only numbering in the subassembly matches the parts-only numbering of the main assembly. The subassembly file is physically modified by the command.
