Filtering markings

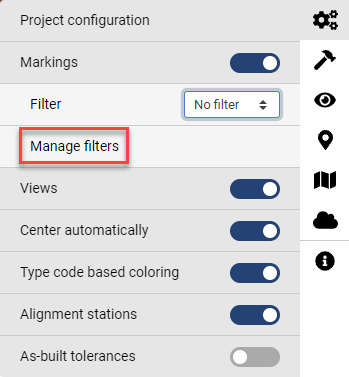

User can create filter for markings. There are two types of filters, first is used only in the on-going session and these will be deleted after the session. Second type is project-wide filter, these are saved and can be used by all users in project. Filter is created by selecting Settings > Markings (when toggled on) > Manage filters. Next select Create a new filter.

Access filters from the Project settings -menu

Name the filter and select the wanted filters, multiple conditions can be used in a single filter. These are the possible conditions and their values:

Autodesk Construction Cloud

• Assignees – user or group

  • contains at least one of

  • does not contain any of

• Created – date

  • is equal to

  • is greater than or equal to

  • is less than or equal to

  • is not equal to

• Creator – user

  • is one of

  • is not one of

• Includes attachments – yes / no

  • is equal to

  • is not equal to

• Title – text string

  • contains

  • does not contain

• Type - for example Coordination > Clash, Observation > Safety - these are fully customizable

  • is one of

  • is not one of

Trimble Connect

• Assignees – user or group

  • contains at least one of

  • does not contain any of

• Created – date

  • is equal to

  • is greater than or equal to

  • is less than or equal to

  • is not equal to

• Creator – user

  • is one of

  • is not one of

• Includes attachments – yes / no

  • is equal to

  • is not equal to

• Priority – low / normal / high / critical

  • is equal to

  • is greater than or equal to

  • is less than or equal to

  • is not equal to

• Tags – used tags

  • contains at least one of

  • does not contain any of

• Title – text string

  • contains

  • does not contain

• Type - clash / comment / fault / inquiry / issue / remark / request / solution / undefined

  • is one of

  • is not one of

Once wanted conditions are assigned click Save and continue. Created filter is selected from the dropdown -menu found in Settings > Markings.
