Map interface
Map is the centerpiece of Site Management
Displaying models
Controls
Moving on the interface is done by using mouse. Holding down left mouse button it is possible to move around the map by dragging. Single click of left mouse button is used to select objects.
Mouse wheel is used for zooming in and out.
Clicking right mouse button has two functions: create a marking or open the 3d viewer.
Models
Models are opened to the map interface by checking the box next to the wanted files. The project must have a coordinate reference system assigned to it from Project Configuration to be able to display files.

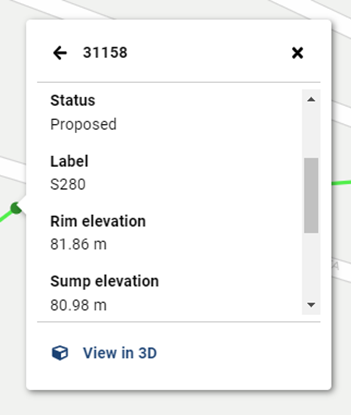

Once models are opened, user can view them and check the metadata within object.
By right clicking the map interface user can open the visible models directly to 3d Viewer.
Possible errors
Supported file formats sometimes contain data which cannot be displayed on map. User is informed with an exclamation mark in front of the model.
User might face unlikely errors when opening files, usually this due to the LandXML being against the schema.
Currently there is a file size limit of 100 mb, if the file exceeds that, it won’t processed nor displayed. Please contact your local Site Management supplier if you are facing issues with the file size limit.
Functionalities
There are some functionalities hidden in the map, which can be used by clicking diffent types of objects.
Hide models
Clicking an element on the map opens a dialog. In the dialog Hide models -functionalities removes the selected model in the active map view. Making it easy to hide models from the map, instead of searching these from the folder structure.
Alignment tools
If there is a LandXML alignment visible on the map, clicking it gives multiple options:
Zoom to station enables to search the wanted station on the alignment and automatically zoom to it.
Cross section and Long section make it faster to create a section based on this alignment
